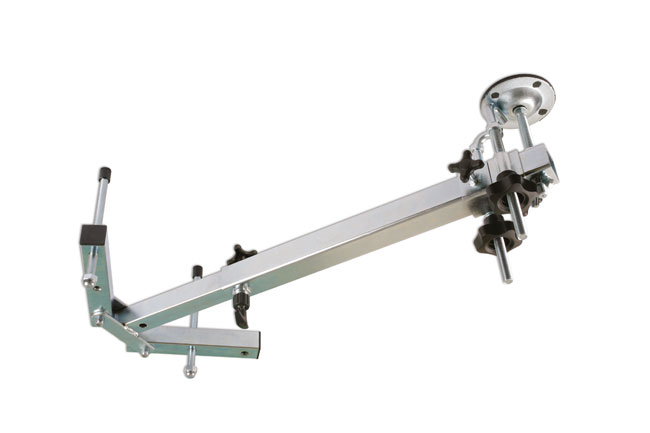

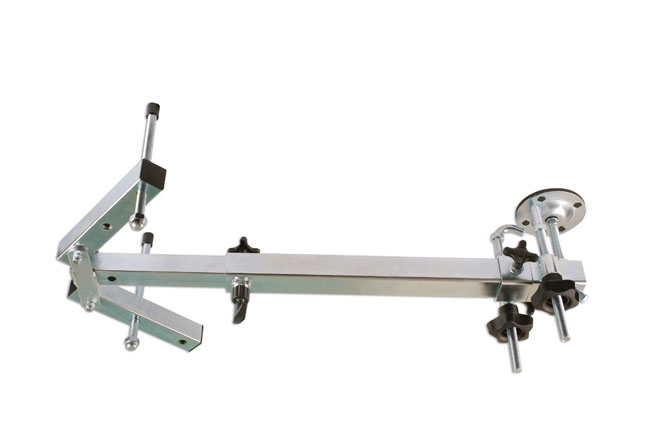

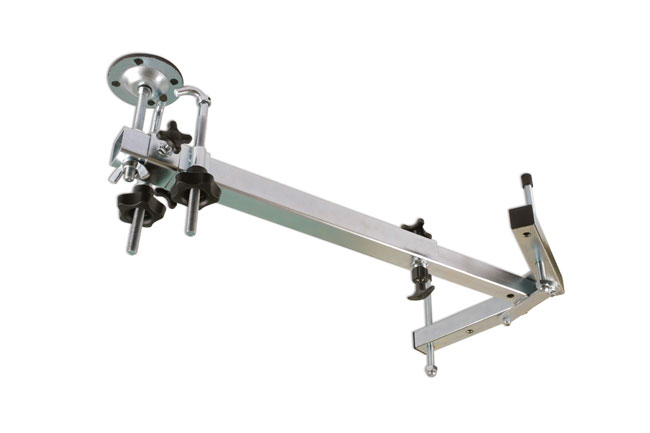

Engine/Gearbox Support
Cod produs: 57502,914.30 lei
Designed for transverse-engined vehicles, the frame will support the engine and/or gearbox when carrying out repair operations like clutch or gearbox removal, DMF change, removing and replacing engine and gearbox mounts, for cam belt replacement, etc.
Engine/Gearbox Support
With car on ramp, engine/gearbox position and height can be adjusted from underneath.
Once support frame is secured in position, vehicle ramp can be moved up and down.
Length of frame, position of thrust pins, mounting support hooks and main support pad is fully adjustable to suit many applications.
Frame length: 600mm – 930mm (fully extended). Maximum width of thrust pins: 300mm (position 1), 500mm (position 2). Maximum load 400kg.
| Greutate | 10.8 kg |
|---|---|
| Brand: | Laser Tools |
