C-Frame Socket Press
Cod produs: 79872,500.42 lei

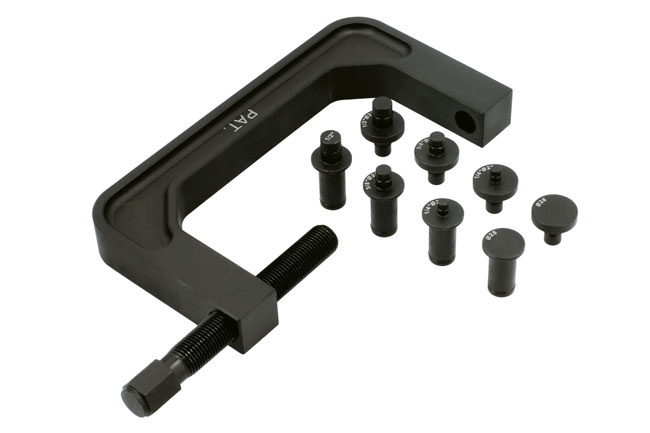

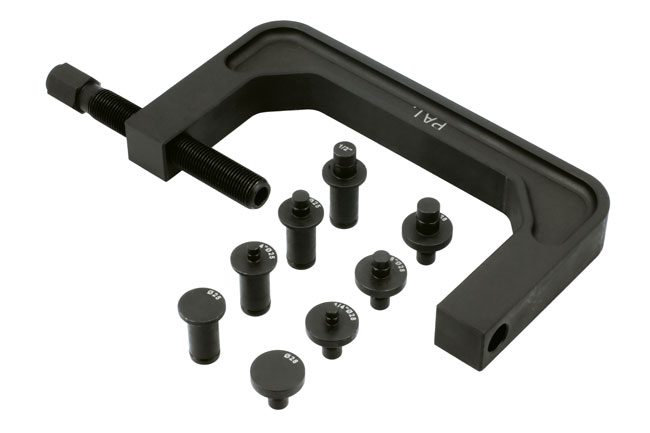

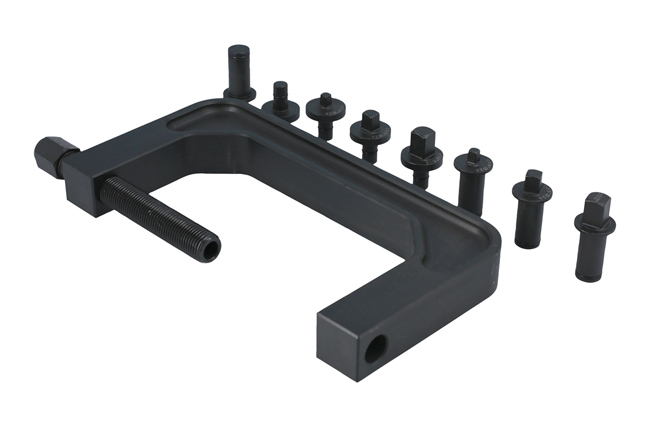

C-frame socket press allows readily available impact socketry to be used as press cups for various removal and installation jobs on driveline and non-driveline bushes and bearings. The 7987 kit uses specially designed round socket adaptors to prevent the rotational forces from the force screw damaging the sockets.
C-Frame Socket Press
6 round socket adaptors to fit 1/2″, 3/8″ & 1/4″D sockets; 2 anvil attachments for general bush & bearing extraction and insertion tasks.
Adaptor diameters: 25 and 28mm. Press drive: 22mm Hex. C-frame working dimensions: 150mm (width) x 90mm (depth).
Applications include: propshaft universal joints, small suspension bushes, gear linkage bushes, shock absorber bushes, car and LCV wheel studs. Maximum capacity: 2.5 tonnes.
Designed to allow 1/2″, 3/8″ and 1/4″ drive sockets to be used as press cups (always use impact quality sockets).
Manufactured from high-grade steel for strength and durability. Can be used with 1/2″D impact wrenches not exceeding 500ft-lb (670Nm) of torque. IMPORTANT: ensure the force screw is well lubricated with molybdenum disulphide grease before use.
| Greutate | 4.597 kg |
|---|---|
| Brand: | Laser Tools |
